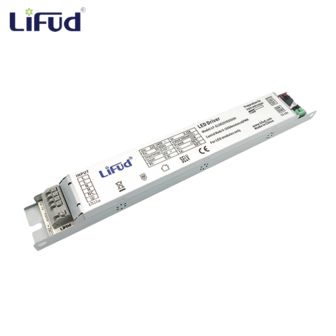

Lifud driver | Constant Current | Linear Non Dimmable | Fixed Current II | 62-72W | 220-240V | 25-42V
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Linear Non Dim. Fixed Current |
| Model |
LF-GLD080YE |
| Max Output |
Options: 62W, 64W, 66W, 68W, 70W, 72W |
| |
74W, 76W, 78W, 80W |
| Dim. Functions |
Non Dimmable |
| Input Voltage |
220- 240V |
| Output Voltage |
25V-42V |
| Output Current + Efficiency (Typical) |
62W: 1550mA, 87% |
| |
64W: 1600mA, 87% |
| |
66W: 1650mA, 87% |
| |
68W: 1700mA, 87% |
| |
70W: 1750mA, 87% |
| |
72W: 1800mA, 88% |
| |
74W: 1850mA, 88% |
| |
76W: 1900mA, 88% |
| |
78W: 1950mA, 88% |
| |
80W: 2000mA, 88% |
| PF (Typical) |
0.90(230Vac) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
355*21*30 mm |
| Certificates |
CE, CB, RCM, SAA |
| Warranty |
5 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
